LAB 1: VM Setup and ROS Pub/Sub

This guide covers the configuration of the the Ubuntu VM. Then by using the official ROS 2 Jazzy documentation, you learn how to navigate the primary resource for ROS 2.

What You'll Learn:

• VM Management: How to import, configure, and optimize your virtual workspace using VMware.
• Linux Essentials: Navigating the Ubuntu file system and mastering the Bash command line.
• ROS2 Basics: Creating a workspace, compiling code, and implementing the Publisher/Subscriber pattern to communicate between nodes.

Evaluation

Your grade will be based on the following:

• Live Demo: Show your Publisher and Subscriber nodes communicating successfully.
• Oral Examination: Explain how the Publisher/Subscriber pattern works and how you configured your nodes.
• Live Modification: Demonstrate code proficiency by making small, real-time changes to your logic.

PART 1: VM Setup

Install VMware Workstation (Windows/Linux) or VMware Fusion 25H2 (macOS) from here. The Host computer will run an Ubuntu 24.04 VM using VMware. ROS 2 Jazzy FastDDS (along with a lot of useful tools) is installed in the Ubuntu VM.

Note: The download process is a bit annoying. You will need to create an account first (Click on Login -> Register). After logging in, click on "My Downloads", search for the right software, Check on "Terms and Conditions", and then finally download it.

1. Importing the VM

2. Optimizing Hardware Settings

Before clicking "Power On," select Edit Virtual Machine Settings and apply these optimizations:

NOTE: If you need to lower these values slightly due to hardware limitations, the VM should still function. If your computer was purchased within the last 4 years, it will likely run the VM without issues.

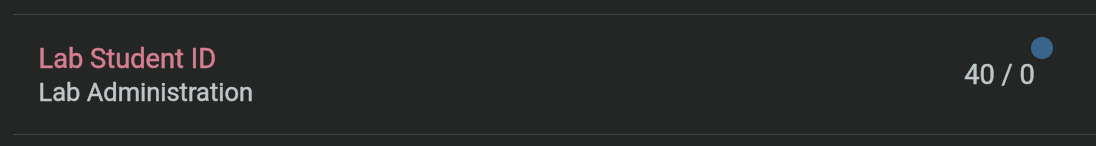

3: Get your Unique Student ID

1. Go to Canvas and click on Grades.
2. You should see a score for the Assignment Lab Student ID. The score is your Lab Student ID.

4: First Boot

Note: Make sure you change the display settings to match the resolution and scaling required for your monitor.

1. Open a terminal using the Tilix application on the Ubuntu global menu.

   Tilix is a tiling terminal emulator for Linux that allows you to organize multiple terminal sessions into a single window using a flexible grid layout.

1. Run the commands below:

   cd ~/vm_setup
   git pull
   ./first_boot.sh


   Note: Enter your unique Lab Student ID when requested by the script.

In the above bash commands, you are pulling the latest changes from the git repo vm_setup hosted on GitHub (If you are unfamiliar with git, dont worry! We will post a quick guide for git soon.).

You then run the script first_boot.sh. It will automatically set your VM to a unique hostname (different from the ubuntu VMs run by other students) to ubuntuvm{LAB_STUDENT_ID}. It will subsequently ask you to reboot the VM for the changes to take place.

5: Get IP

After reboot, your VM should be connected to the same WiFi as your host computer. Run the below command in a terminal in the VM to get the IP address of your VM:

ip -4 addr show | grep -oP '(?<=inet\s)\d+(\.\d+){3}' | grep -v '127.0.0.1' | head -n 1

5. How to Shutdown?

In VMware, choosing how to close your VM is the difference between a clean exit and a corrupted lab.

To shutdown safely, there are two ways to ensure your work is saved and the virtual "disk" stays healthy.

1. Using the Terminal

• GUI: Top-right corner icon → Power Off / Log Out → Power Off.
• Terminal: Open a terminal and type: sudo shutdown now.

2. Using the VMware Interface

PART 2: ROS 2 Publisher and Subscriber

In this part, you will learn about ros workspaces, ros packages and colcon. You will then follow the industry-standard ROS2 tutorial to create a basic "Talker" and "Listener".

ROS Workspace

A ROS workspace is a directory with a particular structure. Commonly there is a src subdirectory. Inside that subdirectory is where the source code of ROS packages will be located. Typically the directory starts otherwise empty.

colcon performs out-of-source builds. By default it will create the following directories as peers of the src directory:

• The build directory will be where intermediate files are stored. For each package a subfolder will be created in which e.g. CMake is being invoked.
• The install directory is where each package will be installed to. By default each package will be installed into a separate subdirectory.
• The log directory contains various logging information about each colcon invocation.

Create a workspace

First, create a directory (ros2_ws) to contain our workspace:

mkdir -p ~/ros2_ws/src
cd ~/ros2_ws

At this point the workspace contains a single empty directory src:

.
└── src

1 directory, 0 files

Build the workspace

In the root of the workspace, run

colcon build

After the build is finished, we should see the build, install, and log directories:

    .
    ├── build
    ├── install
    ├── log
    └── src

    4 directories, 0 files

Source the environment

When colcon has completed building successfully, the output will be in the install directory. Before you can use any of the installed executables or libraries, you will need to add them to your path and library paths.

colcon will have generated bash files in the install directory to help set up the environment. These files will add all of the required elements to your path and library paths as well as provide any bash or shell commands exported by packages.

cd ~/ros2_ws
source install/setup.bash

Faster Code Iterations without build

colcon build: Copies your Python scripts from the src folder to the install folder. If you change your code, you must rebuild for the changes to take effect.

colcon build --symlink-install: Creates "symbolic links" (shortcuts) from the install folder back to your src folder. If you change your code, the changes take effect immediately without rebuilding. If you create a brand new .py file that needs to be recognized as part of the package or make changes to setup.py or package.xml, you need to run colcon build first.

colcon build --packages-select YOUR_PKG_NAME: Build only the selected package "YOUR_PKG_NAME" to speed up the build process.

ROS 2 package

A package is an organizational unit for your ROS 2 code. If you want to be able to install your code or share it with others, then you'll need it organized in a package. With packages, you can release your ROS 2 work and allow others to build and use it easily.

Package creation in ROS 2 uses ament as its build system and colcon as its build tool. You can create a package using either CMake or Python, which are officially supported, though other build types do exist.

What makes up a ROS 2 package?

ROS 2 Python and CMake packages each have their own minimum required contents:

The simplest possible package may have a file structure that looks like:

  my_package/
      CMakeLists.txt
      include/my_package/
      package.xml
      src/

  my_package/
      package.xml
      resource/my_package
      setup.cfg
      setup.py
      my_package/

Packages in a workspace

A single workspace can contain as many packages as you want, each in their own folder. You can also have packages of different build types in one workspace (CMake, Python, etc.). But you cannot have nested packages.

Best practice is to have a src folder within your workspace, and to create your packages in there. This keeps the top level of the workspace "clean".

A trivial workspace might look like:

  workspace_folder/
      src/
        cpp_package_1/
            CMakeLists.txt
            include/cpp_package_1/
            package.xml
            src/

        py_package_1/
            package.xml
            resource/py_package_1
            setup.cfg
            setup.py
            py_package_1/
        ...
        cpp_package_n/
            CMakeLists.txt
            include/cpp_package_n/
            package.xml
            src/

Create a package

Let's use the workspace you created ros2_ws, for your new package.

Make sure you are in the src folder before running the package creation command.

cd ~/ros2_ws/src

To create a new python package named "my_package" with Apache-2.0 license and a "Hello World" Python script named "my_node.py" inside your package, enter the following command in your terminal:

 ros2 pkg create --build-type ament_python --license Apache-2.0 --node-name my_node my_package

--node-name option creates a simple Hello World type executable in the package, and --license declares the license information for the package. You will now have a new folder within your workspace's src directory called my_package.

After running the command, your terminal will return the message:

going to create a new package
package name: my_package
destination directory: /home/user/ros2_ws/src
package format: 3
version: 0.0.0
description: TODO: Package description
maintainer: ['<name> <email>']
licenses: ['Apache-2.0']
build type: ament_python
dependencies: []
node_name: my_node
creating folder ./my_package
creating ./my_package/package.xml
creating source folder
creating folder ./my_package/my_package
creating ./my_package/setup.py
creating ./my_package/setup.cfg
creating folder ./my_package/resource
creating ./my_package/resource/my_package
creating ./my_package/my_package/__init__.py
creating folder ./my_package/test
creating ./my_package/test/test_copyright.py
creating ./my_package/test/test_flake8.py
creating ./my_package/test/test_pep257.py
creating ./my_package/my_package/my_node.py

You can see the automatically generated files for the new package.

Build a package

Putting packages in a workspace is especially valuable because you can build many packages at once by running colcon build in the workspace root. Otherwise, you would have to build each package individually.

Return to the root of your workspace and then you can build your packages:

cd ~/ros2_ws
colcon build

Source the setup file

To use your new package and executable, first open a new terminal and source your main ROS 2 installation.

Then, from inside the ros2_ws directory, run the following command to source your workspace:

source install/local_setup.bash

Now that your workspace has been added to your path, you will be able to use your new package's executables.

Use the package

To run the executable you created using the --node-name argument during package creation, enter the command:

ros2 run my_package my_node

The output would like this:

Hi from my_package.

Examine package contents

Inside ros2_ws/src/my_package, you will see the files and folders that ros2 pkg create automatically generated:

LICENSE my_package  package.xml  resource  setup.cfg  setup.py  test

my_node.py is inside the my_package directory. This is where all your custom Python nodes will go in the future.

Customize package.xml

You may have noticed in the return message after creating your package that the fields description and license contain TODO notes in your package.xml. That's because the package description and license declaration are not automatically set, but are required if you ever want to release your package. The maintainer field may also need to be filled in.

From ros2_ws/src/my_package, open package.xml using your preferred text editor:

<?xml version="1.0"?>
<?xml-model
  href="http://download.ros.org/schema/package_format3.xsd"
  schematypens="http://www.w3.org/2001/XMLSchema"?>
<package format="3">
<name>my_package</name>
<version>0.0.0</version>
<description>TODO: Package description</description>
<maintainer email="eva@todo.todo">eva</maintainer>
<license>Apache-2.0</license>

<test_depend>ament_copyright</test_depend>
<test_depend>ament_flake8</test_depend>
<test_depend>ament_pep257</test_depend>
<test_depend>python3-pytest</test_depend>

<export>
  <build_type>ament_python</build_type>
</export>
</package>

Input your name and email on the maintainer line if it hasn't been automatically populated for you, Then, edit the description line to summarize the package:

  <description>Beginner client libraries tutorials practice package</description>

Don't forget to save once you're done editing.

Below the license tag, you will see some tag names ending with _depend. This is where your package.xml would list its dependencies on other packages, for colcon to search for. my_package is simple and doesn't have any dependencies, but you will see this space being utilized in other labs/assignments.

The setup.py file contains the same description, maintainer and license fields as package.xml, so you need to set those as well. They need to match exactly in both files. The version and name (package_name) also need to match exactly, and should be automatically populated in both files.

Open setup.py with your preferred text editor.

from setuptools import find_packages, setup

package_name = 'my_py_pkg'

setup(
name=package_name,
version='0.0.0',
packages=find_packages(exclude=['test']),
data_files=[
    ('share/ament_index/resource_index/packages',
            ['resource/' + package_name]),
    ('share/' + package_name, ['package.xml']),
  ],
install_requires=['setuptools'],
zip_safe=True,
maintainer='eva',
maintainer_email='eva@todo.todo',
description='TODO: Package description',
license='Apache-2.0',
tests_require=['pytest'],
entry_points={
    'console_scripts': [
            'my_node = my_py_pkg.my_node:main'
    ],
  },
)

Edit the maintainer, maintainer_email, and description lines to match package.xml.

Don't forget to save the file.

Summary

You've created your first ROS2 package to organize your code and make it easy to use for others. Your package was automatically populated with the necessary files, and then you used colcon to build it so you can use its executables in your local environment.

Write a simple publisher and subscriber

Use the ROS2 official tutorial Writing a simple publisher and subscriber (Python) to learn to create your first subscriber and publisher node.

Run both nodes in separate terminals. You should see "Hello World" messages streaming across.

Tip: Use the "Beginner: CLI Tools" to have a more in-depth understanding of the ROS2 Design and ROS2 CLI tools.

References

• ROS Client Libraries: https://docs.ros.org/en/jazzy/Tutorials/Beginner-Client-Libraries.html
• bash Basic Commands: https://www.w3schools.com/bash/bash_commands.php
• ROS Jazzy Installation: https://docs.ros.org/en/jazzy/Installation/Ubuntu-Install-Debs.html
